Important: To let us control the charging power of your wallbox, it needs at least firmware version 1.9.2. With older firmware, the wallbox rejects our power limits and always charges at full power.
You can add Peblar Home and Business models to your system. These are connected and controlled via OCPP.
We support both the Peblar Home and Business models.
To connect your Peblar to our system, please follow these steps:
- For the initial commissioning, please connect to the charging station's Wi-Fi hotspot. Use the provided QR codes to establish the Wi-Fi connection and access the web interface. Detailed instructions can be found in the included Quickstart Guide.
- Open the web interface using the IP address (you can find this in your router's home network overview) or the provided IP address.

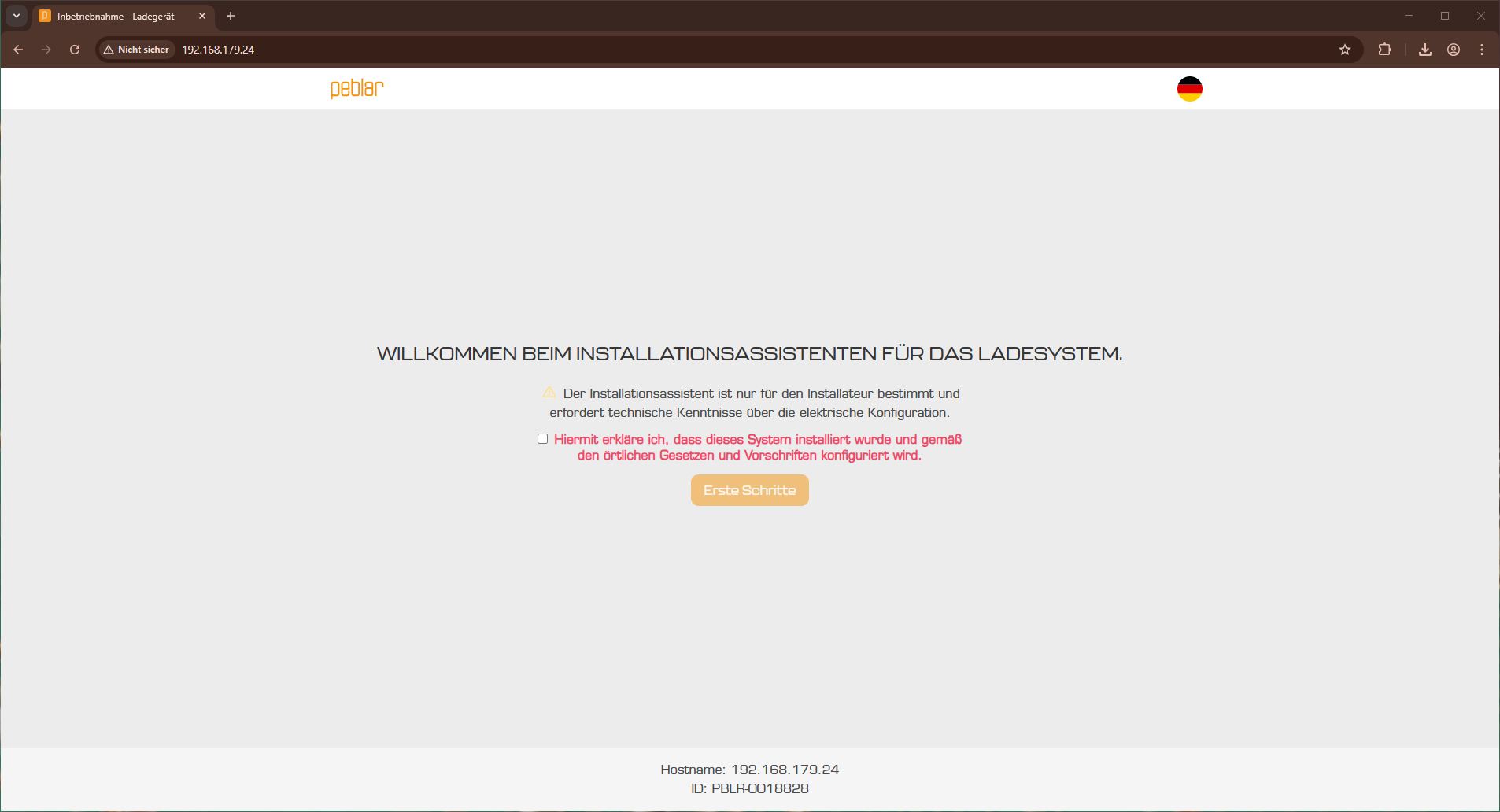

- Click on "Get started"

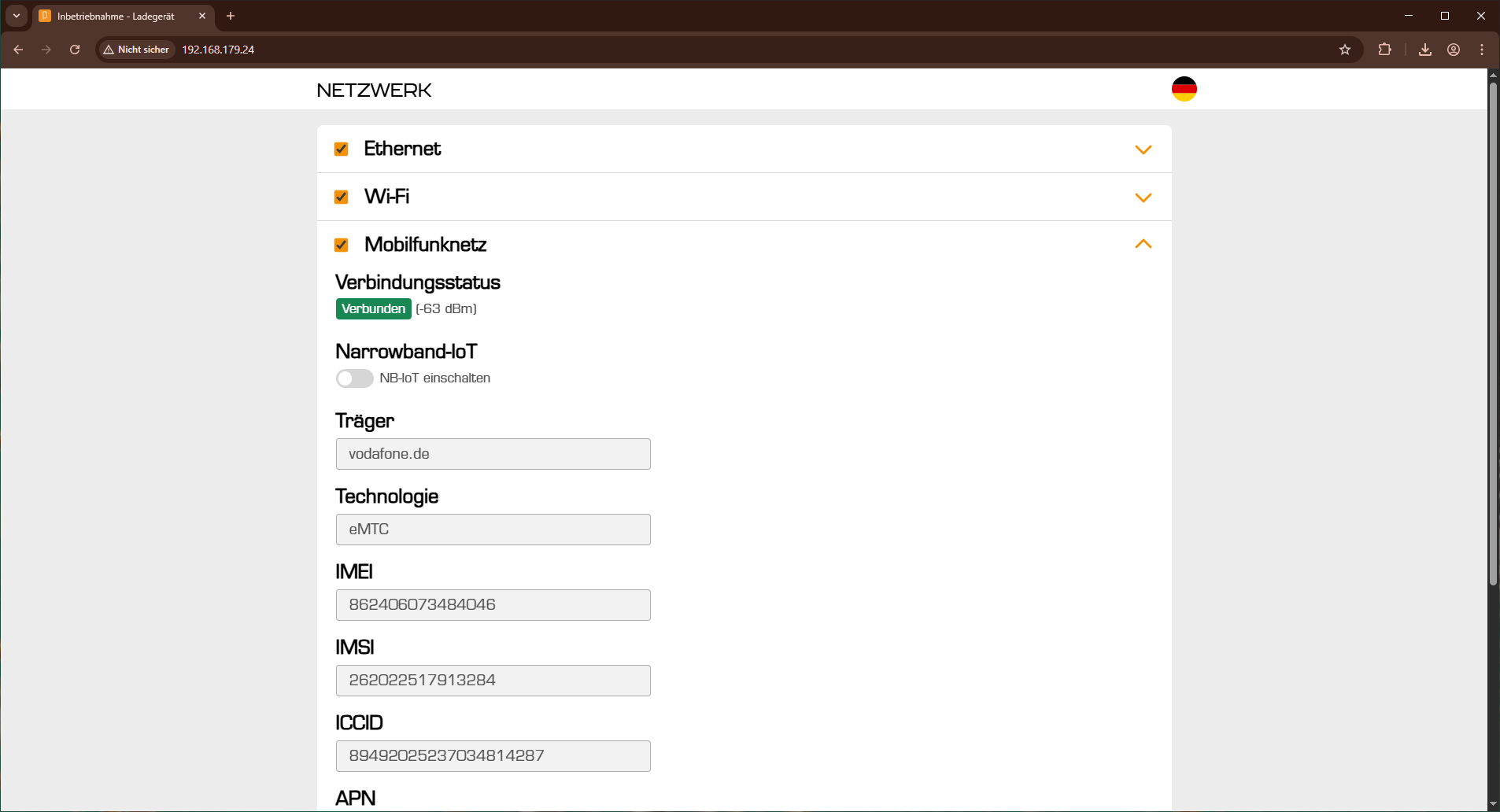

- Set up your network (LAN, Wi-Fi if applicable, and cellular)

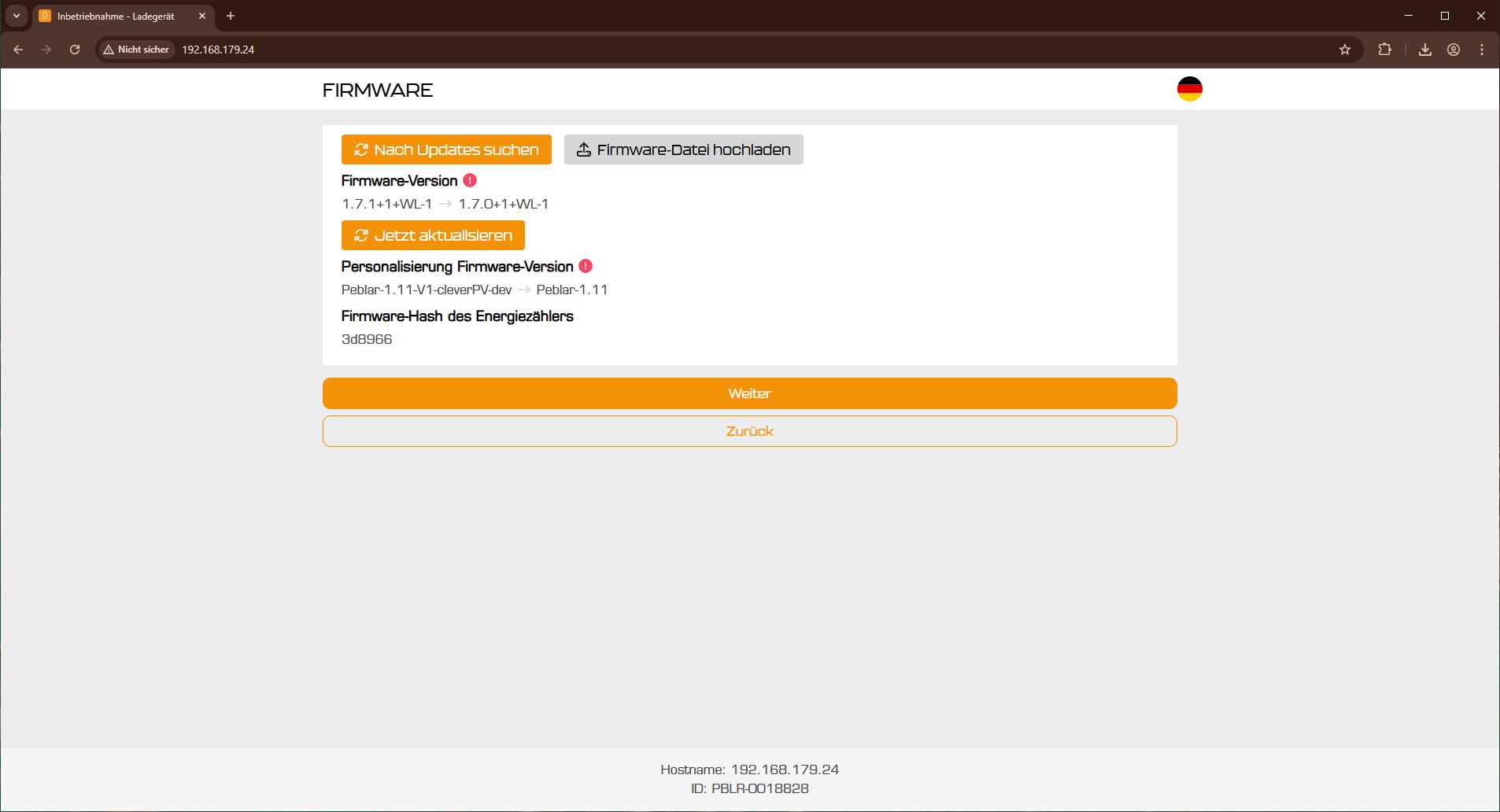

- Click on "Check for updates" and then "Update now" to install the latest version

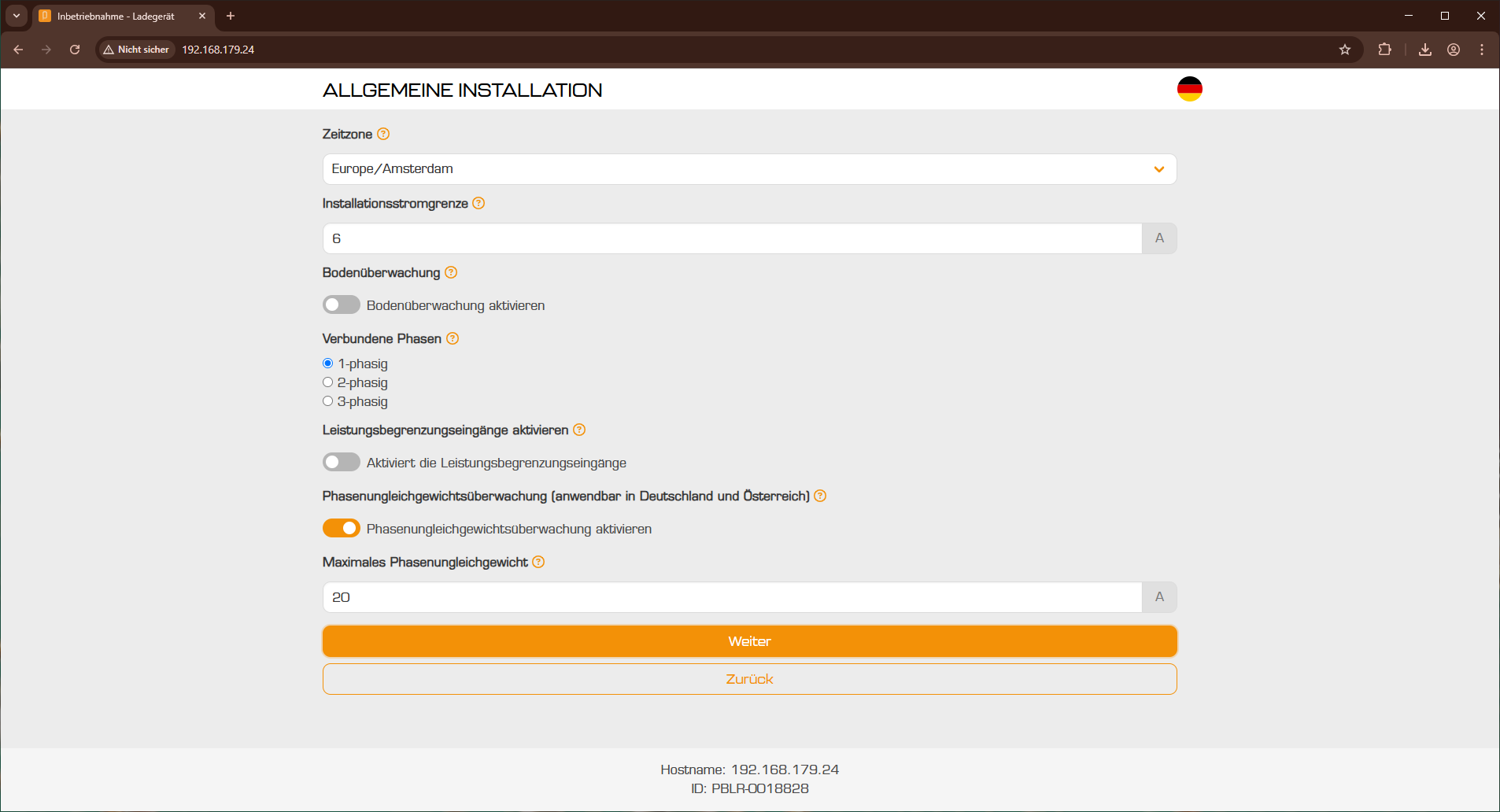

- Select your current limit; consult your electrician/installer if necessary
- Select the number of phases the wallbox is connected to.
- Set "Enable group load balancing" to "No" if you are not using any additional wallboxes.

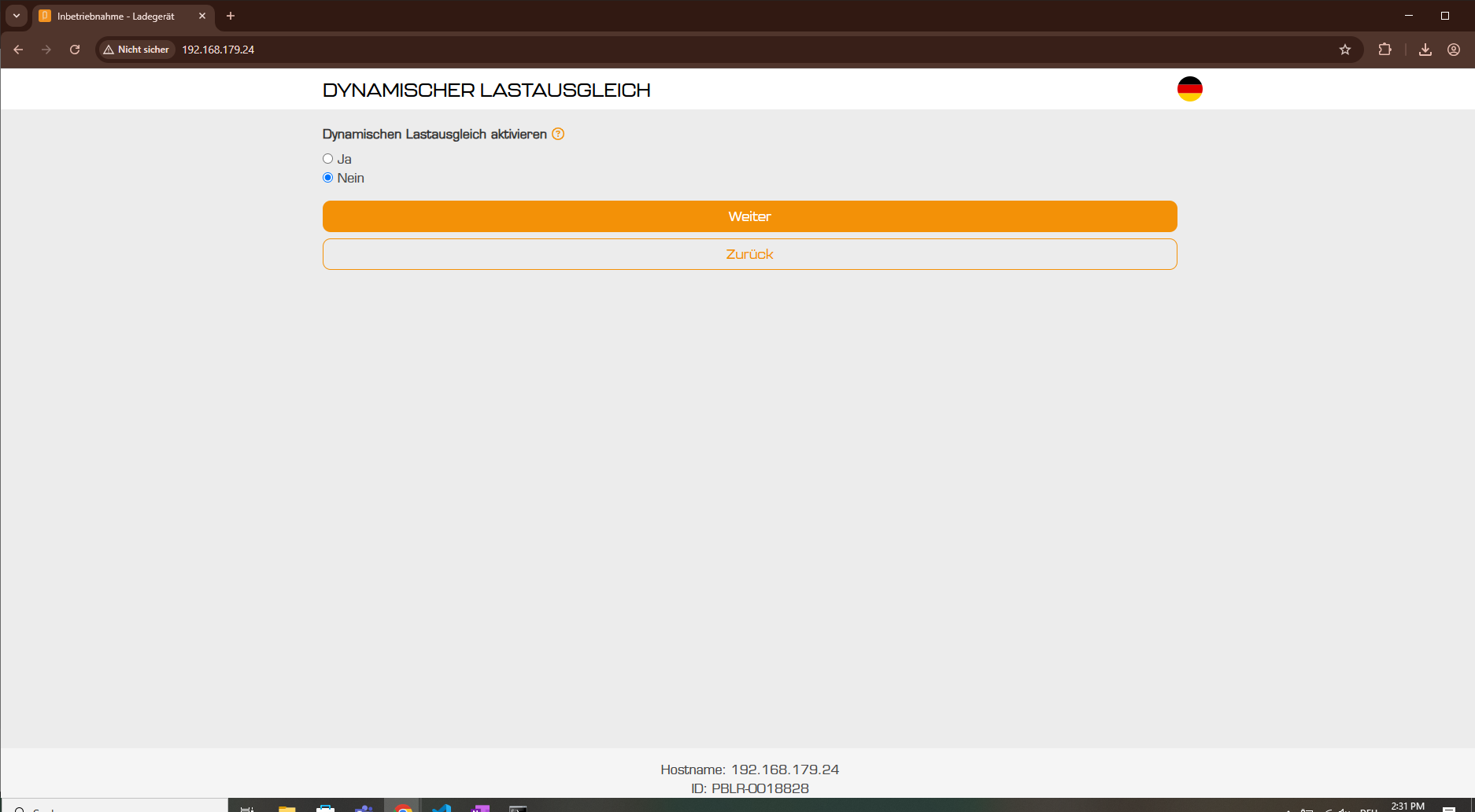

- Select your settings for "Dynamic load balancing".

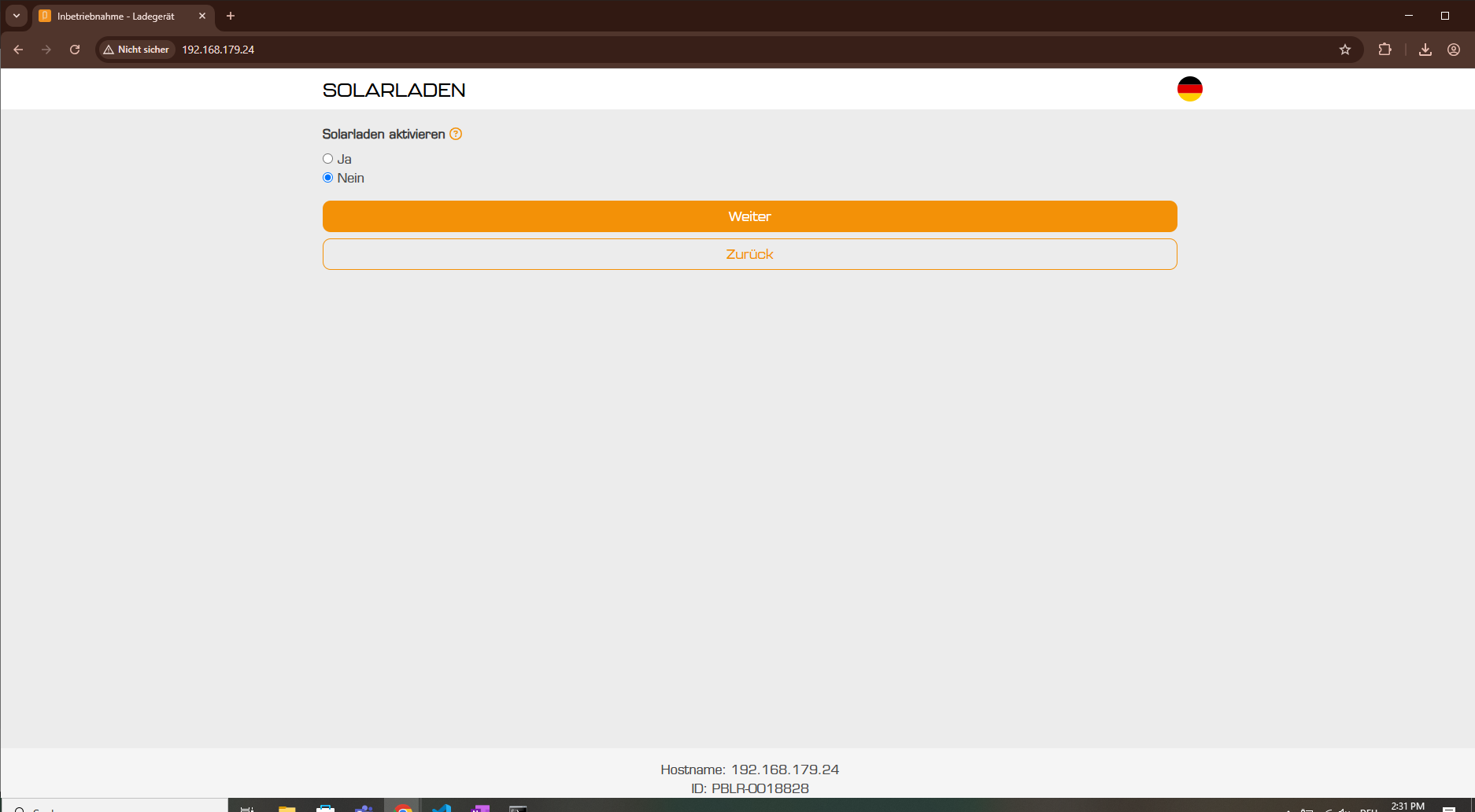

- Set "Enable solar charging" to "No"
- Set "Enable household limit" to "No"

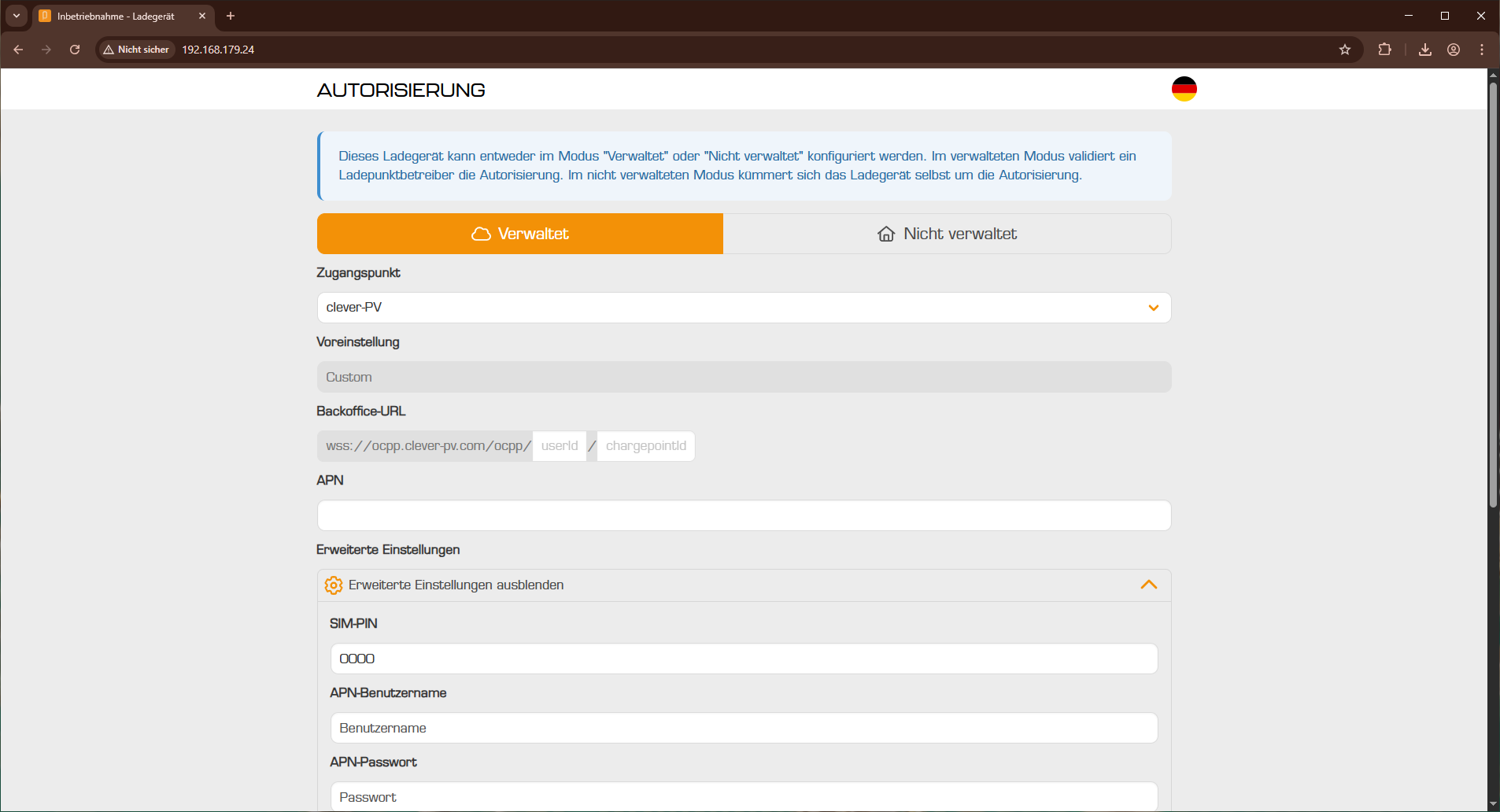

- Now establish the OCPP connection; enter "clever-PV" as the access point.
- Paste the OCPP link displayed in our app into the "Backoffice URL" field: wss://ocpp.clever-pv.com/ocpp/XXXXXXXX/chargeopointID. You will receive the red part from us; then, append the chargepointID of your wallbox.

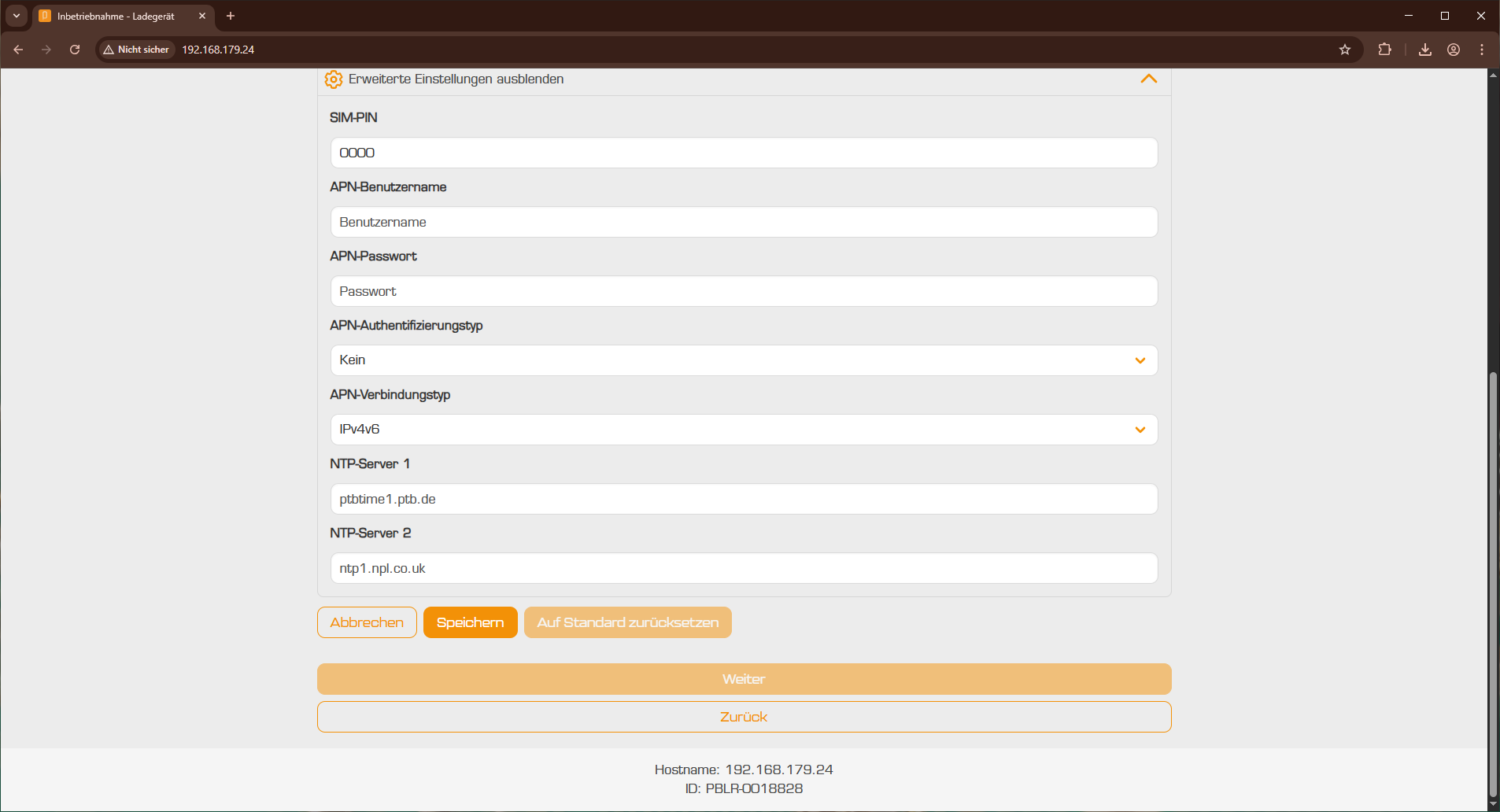

- Fill in the remaining fields as shown, then click "Save" and "Next"

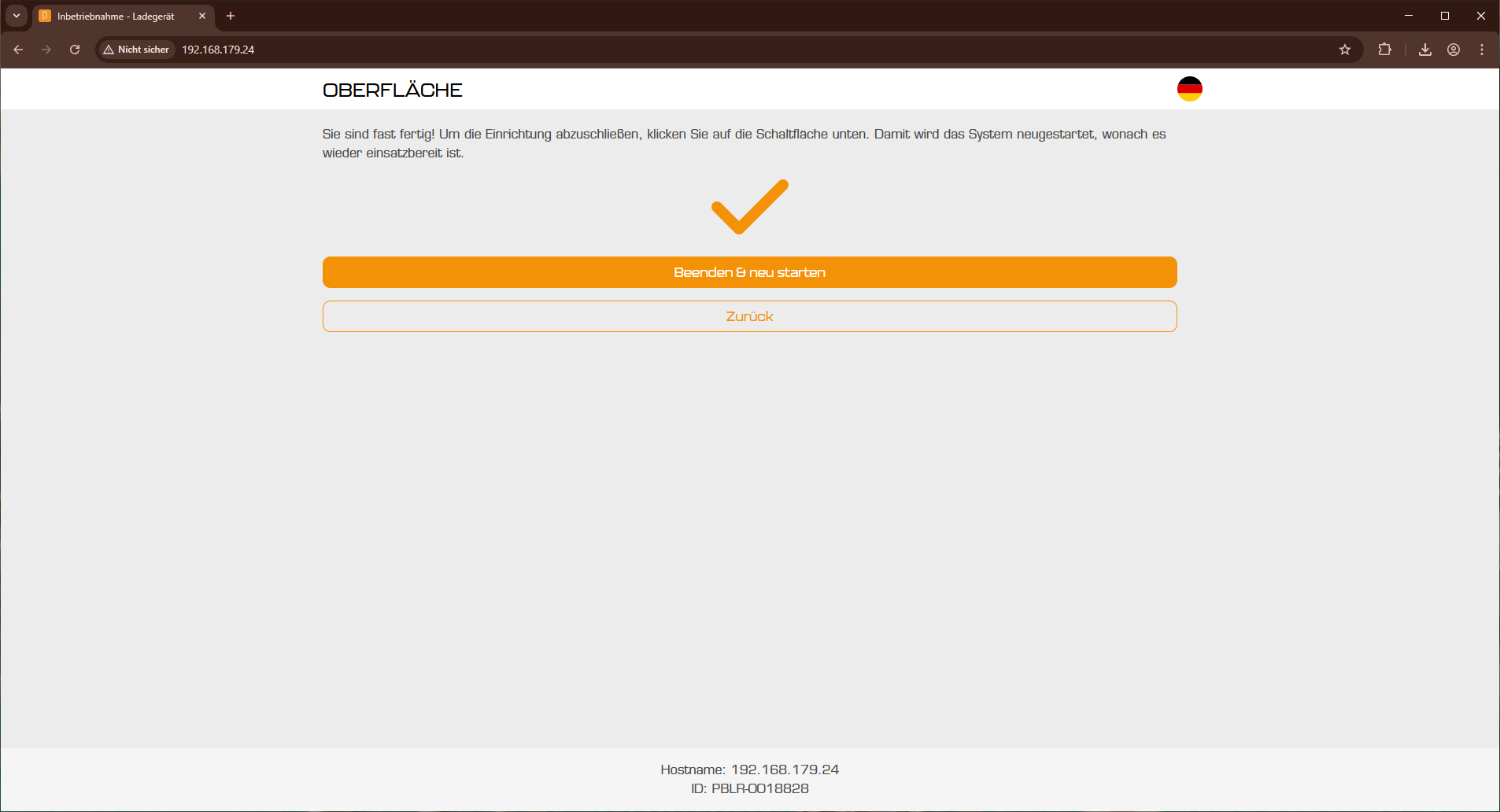

- Finally, click "Finish & Reboot"
The device should be selectable in our app after the reboot.
If it is not yet selectable, please start a charging session.
Q: What should I do if my Peblar/ChargeLine is already configured?
A: If the wallbox is already configured, you must first initiate a re-commissioning.
Q: My Peblar/ChargeLine always charges at full power and does not follow the solar surplus. What can I do?
A: Check the firmware version in the web interface of your wallbox. If it is older than 1.9.2, click "Check for updates" and then "Update now". After the reboot, the wallbox follows our charging limits again.
