cFos Power Brain

Updated

1. Retrieve the OCPP URL in our app

  • Open our app on your smartphone or tablet.
  • Look for the section where you can add devices or create new connections. This section may be labeled "Devices," "Settings," "Integrations," or similar.
  • Tap "Add device," "Create new connection," or a similar option.
  • Select "Wallbox" or "Charging station" from the list of available device types.
  • Select "OCPP 1.6" as the manufacturer.
  • The app will now display an OCPP URL. This URL will look something like this:
    ws://cleverpv-ocpp.azurewebsites.net/ocpp/abcd1234
  • Make a note of this URL, as you will need it in the next step.

2. Configure OCPP settings in the cFos Power Brain wallbox

  • Open the web interface of your cFos Power Brain wallbox.
  • Click the green gear icon ("Settings") in the wallbox tile.
  • Navigate to the "OCPP Gateway Settings" section.

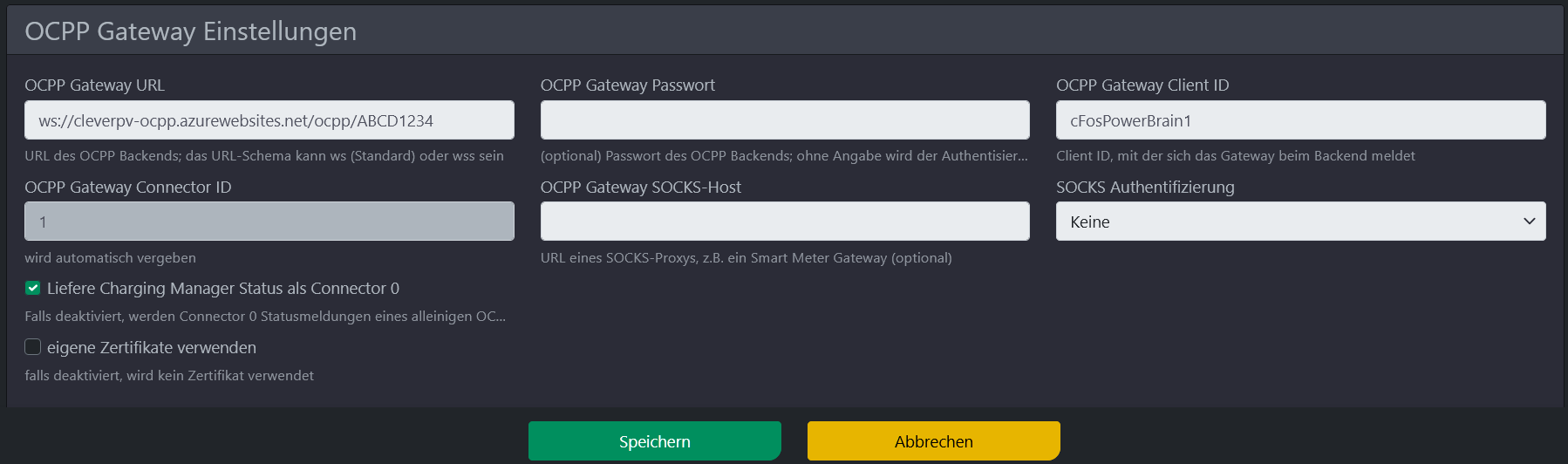

cFos Power Brain Screenshot 2.png

  • Paste the previously noted OCPP URL into the "OCPP Gateway URL" field.
  • Enter any identifier in the "OCPP Gateway Client ID" field. This identifier will be used later in our app to identify your wallbox.
  • Leave all other fields in the "OCPP Gateway Settings" section empty.
  • Click "Save."
  • Wait a few seconds. The text "OCPP-Gateway accepted" or a similar message should now appear in the wallbox tile. This confirms that the wallbox has successfully connected to our app's backend.

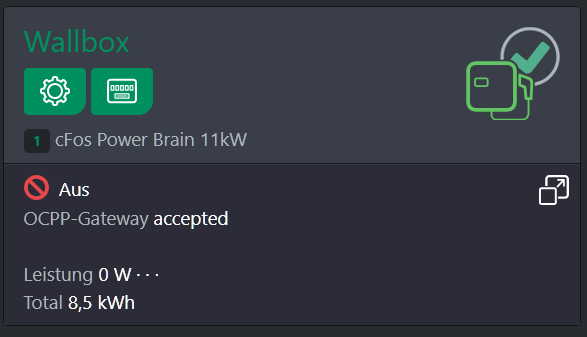

cFos Power Brain Screenshot 1.png

3. Complete the setup in our app

  • Return to our app.
  • Follow the instructions in the app to complete the setup of your wallbox.
  • You should now be able to control your wallbox via our app.
